PCB or Package samples can be delayered and examined at each layer. Package delayering is helpful in looking for as well as design rule distances with in such samples. Packages can also be removed to allow analysis from the backside of die.

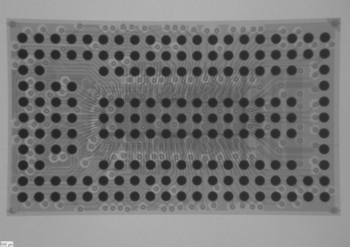

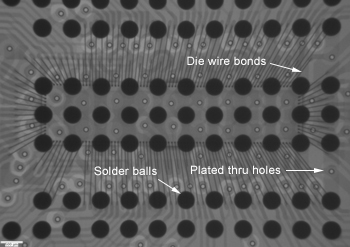

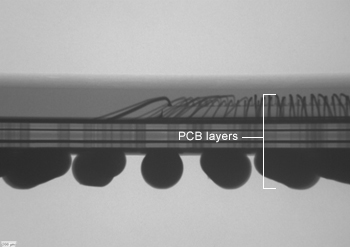

First a low mag X-ray is used to take a top view of a package. This is then repeated with the solder ball back, and sides

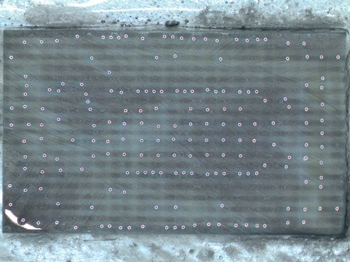

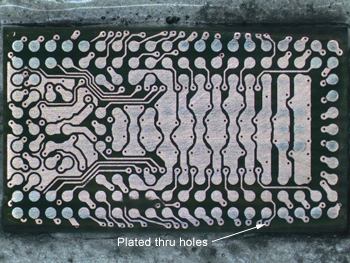

The device is then polished away layer by layer so that examination, images and analysis can be performed as needed.

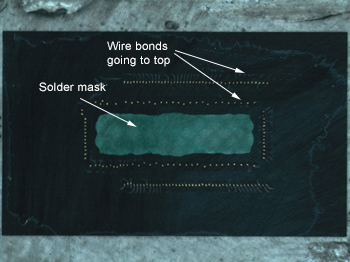

The exposure of the die and the wire bonds allows Emission/OBIRCH/IR techniques to be applied to the device.
Contact us today for your Package Delayering Services needs at +1 800-366-3867 or please complete the form below to have an EAG expert contact you.
