X-Ray Images at EAG

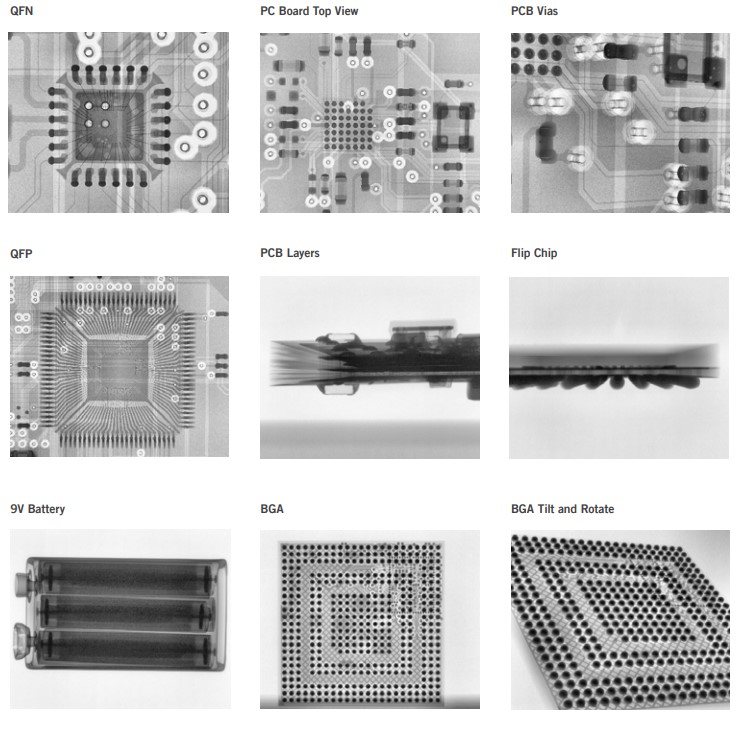

X-ray images from EAG include PCB layers, PC Board views, QFN, PCB Vias, QFP, Flip Chip, 9V Battery, BGA and BGA tilt and rotate. The following shows typical examples.

EAG has over 30 years supporting companies in the total product lifecycle from conception thru volume production. An example is our testing services which offer 24/7 production, pilot, prototype test and the capability to rent our tools for onsite program.

Many of our clients are not aware that we can also manage the complete backend process where we receive a fabricated wafer ready for testing, perform electrical testing, return to assembly, and once returned, perform final test and QA.

X-ray Examples

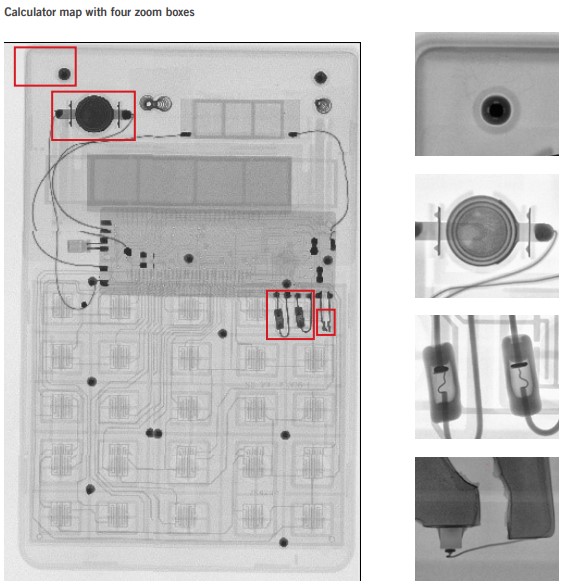

X-ray of calculator

Would you like to learn more about testing semiconductors using X-ray?

Contact us today for your testing using x-ray needs at +1 800-366-3867 or please complete the form below to have an EAG expert contact you.
